Building a new radiator for a vintage car isn’t just a repair — it’s craftsmanship. Early radiator builders were pioneers. With no standard methods or materials, they learned through trial and error how to control engine heat using only copper, brass, and hand tools.

The Origins of Radiator Craftsmanship

In the early 1900s, mechanics and fabricators experimented with different metals and cooling designs to keep internal combustion engines from overheating. They had no playbook — only experience. Over time, copper and brass emerged as the best materials for heat dissipation and durability, especially when soldered by hand.

Two Major Core Styles: Honeycomb and Tubular

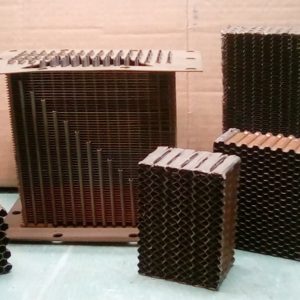

Vintage radiators used either a honeycomb or a tubular core. Each had distinct properties and construction methods.

• Honeycomb cores came in various cell shapes — hexagonal, square, diamond, and more — giving each radiator a unique appearance and function. These intricate patterns weren’t just for looks; they provided maximum surface area for cooling.

• Tubular cores used straight coolant passages with fins between them. This became the dominant style later in automotive history due to its simplicity and ease of cleaning.

Cartridge vs. Film-Type Honeycomb Construction

Honeycomb radiators came in two forms: cartridge-type and film-type.

• Cartridge-style cores used individual tubes cut to depth. Each tube was swedged at the ends, loaded into a jig, and dipped in lead to fuse the assembly. This method allowed for precise, durable construction.

• Film-type cores were produced in longer strips, cut to size, and face-dipped in lead on both ends. This style was faster to produce but still required careful alignment and soldering.

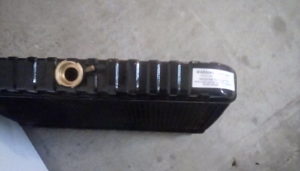

Tank and Header Fabrication

Once the core was assembled, the upper and lower tanks were soldered into place. These pieces often had to be custom-formed to match the exact specifications of the vehicle. A good match ensured both fit and function, keeping the radiator visually correct and mechanically sound.

Why Vintage Radiator Fabrication Still Matters

Today, fabricating a new radiator for a vintage car is part restoration, part preservation. The process involves traditional skills — soldering, shaping, pressure testing — often with original tools or handmade jigs. Reproducing these radiators isn’t easy, but when done right, it gives an antique vehicle both authenticity and reliability.

Each handcrafted radiator is a tribute to the early days of automotive engineering — and proof that some things were built to last.

Neglect is the most frequent cause of radiator failure in classic vehicles. Many vintage car owners overlook cooling system maintenance—such as flushing the engine block and changing coolant—which should be done every two years.

In my experience, components like fan belts, hoses, clamps, and water pumps must also be inspected and replaced when necessary. Never use “STOP leak” additives, as they expand and fully clog the radiator, heater core, or engine.

Proper maintenance prevents major issues like clogged radiators, leaks, or blown head gaskets. These avoidable problems often result from deferred repairs and cost thousands to fix. Care and preventative action are always better than being stranded on the road.

Most vintage car owners remember to change their oil, but many forget about the other half of the equation — the cooling system. While fresh oil protects moving parts, a neglected cooling system invites rust, scale, corrosion, and even electrolysis. These issues don’t just reduce performance — they slowly destroy your engine from the inside out.

Understanding Electrolysis

Older vehicles combine multiple metals — copper, brass, aluminum, iron, and steel — in a single cooling circuit. This creates a low-level electrical charge in the coolant, especially as antifreeze inhibitors degrade. That charge encourages metallic deposits to form inside the radiator, heater core, and water jackets, gradually clogging coolant passages with crusty white or gray buildup.

You can check for this by placing a voltmeter probe into the coolant with the engine idling. Even a slight voltage reading indicates active electrolysis.

Flush Every 3 Years

To avoid cooling system failure, flush and refill the entire system at least once every three years. Use a proper ethylene glycol mix (typically 50/50 to 65/35), or the factory-specified fill. In early vehicles before antifreeze, owners used water in summer and kerosene in winter. Modern antifreeze does far more — it raises the boiling point, prevents freezing, and protects internal metals from corrosion.

Drain Cocks and Heater Cores

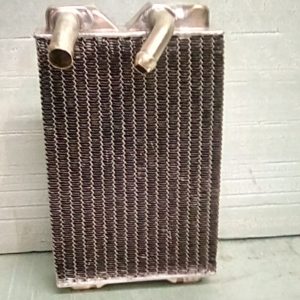

Many antique vehicles have drain cocks on the engine block — use them during flushing until the water runs clear. Don’t forget the heater core. Turn the heater on during flushing to keep coolant from becoming stagnant inside that loop.

Why Water Alone is a Mistake

Never use plain water as coolant. It encourages rust throughout the system and has a lower boiling point. Antifreeze contains corrosion inhibitors that protect internal parts and raise thermal performance.

Air in the System = Accelerated Corrosion

If there’s a leak — a loose hose clamp, failing head gasket, or pinhole in the radiator — air gets pulled into the system. Oxygen combines with heat and moisture to create acids that break down metal. Even a minor leak should be fixed immediately to avoid catastrophic damage.

Real-World Example: The Van with No Impeller

We once serviced a 150 series van with severe overheating. It had already blown a head gasket. After replacing the gasket, hoses, thermostat, and flushing the system, the van still overheated. We pulled the water pump — and found only one impeller blade left. The rest had rusted away entirely. That pump wasn’t circulating anything. Regular inspections could have prevented it.

Another Cautionary Tale

Back in 1973, a customer arrived on a flatbed. His engine was seized and the wiring had melted. He’d driven 30 miles at full overheat, ignoring the pegged temperature gauge. The repair cost was more than the car’s value. He sold it for scrap. A working cooling system could’ve saved the car — and the wallet.

Tips for External Radiator Care

On the East Coast, winter salt can corrode the outside of your radiator and coolers. Gently pressure wash the fins with soapy water at a local car wash to remove salt buildup during winter driving.

Quick Maintenance Checklist

– Hoses: Check for cracking or internal separation. Pieces can break off and block coolant flow.
– Thermostat: Test in water to ensure it opens at the rated temperature (160–180°F for older cars). Replace if sticking.
– Radiator Cap: Check gasket and spring. A bad cap won’t hold pressure, leading to overheating.
– Fan Blades: Inspect for cracks or loose rivets. A thrown blade can destroy a rare radiator core.
– Water Pump: Rock the fan gently — any bearing play means replacement is due.

Radiator = The Heart of Your Cooling System

If your vehicle still overheats at idle or under load, odds are the radiator is to blame. Periodic visual checks for leaks and debris buildup help. Severe rust may take several flushes to clean completely. A radiator shop can clean, rod-out, or re-core your unit to original specs.

In vintage vehicles, cooling system care isn’t optional — it’s essential. Proper maintenance means fewer breakdowns, better performance, and a far longer life for your engine.

Between 1896 and 1930, nearly 1,800 automobile manufacturers were founded — most surviving only two to five years. It was a time of incredible experimentation, innovation, and fierce competition in what was still a brand-new industry.

Early Automotive Power: Steam, Electric, and Gasoline

Before gasoline-powered cars took over, inventors tried steam and electric drive systems. Steam cars had no emissions and ran without gasoline, but they were slow to start and difficult to operate. Electric cars were quiet and simple, but their short range and dependence on city-based charging made them impractical for rural areas. Many people viewed electrics as ‘women’s cars’ due to their simplicity and low speed — typically around 20 mph.

Ultimately, gasoline engines won the battle due to fuel availability and ease of refueling nearly anywhere. This dominance shaped the automotive world as we know it today.

The Rise and Fall of Early Car Makers

In the 1910s and 1920s, it seemed like anyone with a machine shop and a dream could build a car. Many companies were named after their founders: Maxwell, Chalmers, Cadillac, Chevrolet, Ford, Oldsmobile, Nash, Franklin, Rickenbacker — the list goes on. Most of these makers disappeared due to financial failure, limited production, or being absorbed by larger firms.

Every manufacturer had their own ideas about engines, cooling systems, ignition, and body styles. There were no standards — which is what makes restoring these early cars so challenging and fascinating today.

Mass Production Changes Everything

In 1908, Henry Ford introduced the Model T, followed by the moving assembly line in 1913. This revolutionized production, dramatically lowering prices. A new Ford could be had for $265 — compared to over $1,000 for early hand-built cars. This brought car ownership to the working class and sealed the fate of many small, hand-built car manufacturers.

A Golden Era for Innovation

From the brass-era machines of the early 1900s to the streamlined classics of the 1930s, early automotive history is filled with innovation — both brilliant and bizarre. Open-top touring cars, hand-crank starters, wooden wheels, oil lamps, and gravity-fed fuel systems were all standard at one point.

Restoring vehicles from this era means working with rare parts, forgotten technologies, and often — no manuals at all. Every project is a history lesson in motion.

What We’ve Learned from the Past

Understanding the history of old cars helps us appreciate their design and engineering. It also makes us better restorers. Whether you’re rebuilding a 1910 Olds or a 1928 Nash, each piece tells a story — of ingenuity, perseverance, and a time when the future of transportation was still being invented.
